1U Rackmount Configuration Options

Sample configurations for 1U systems

These 1U rack servers are ideal for when rack space is at a premium. The power consumption of a 1U controller is lower than that of larger servers. They can be used for applications requiring anything from basic entry-level value systems through high performance servers.

  • Ideal for small space constraints
  • Power consumption is lower than larger servers
  • Powerful server features
  • Two 2.5″ internal and four 3.5″ external drive bays
  • Easy to upgrade and adapt over time

The following are pre-configured options, but systems can and should be customized to meet your exact needs, so please contact us for a precise system.

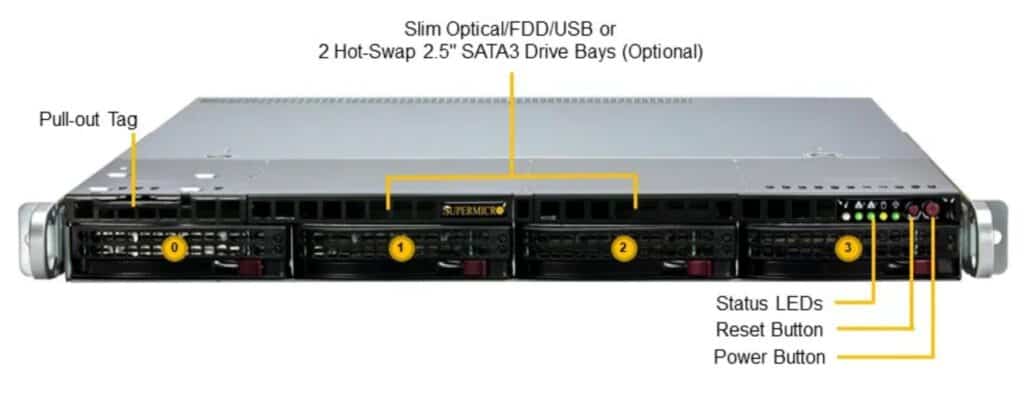

GT130

GT130-Supermicro 5019S-MT 1U Server 2x 10GBase-T LAN
Supports Intel® Xeon® processor E3-1200 v6/v5,Intel® 7th/6th Gen. Core™ i3 series
Four Hot-Swap SATA3 HDD/SSD Bays with RAID
One PCI-E 3.0 x8 Slot
Dual Intel® X550 10GBase-T LAN ports
350W AC Platinum Level Power Supply w/ PFC
19.8″ Depth Rackmount Chassis

Motherboard has built-in dual port 10GBase-T LAN on board and supports 64GB DDR4 Memory
Chassis supports four hot-swap drive bays with RAID

GT135

GT135-Supermicro 1019C-HTN2 1U Server 11.3” Deep
Choice of Intel® Xeon® Processor E-2100 /E-2200 series or 8th/9th Gen. Intel® Core™ i9/i7/i5/i3 Processors
Two Hot-swap 2.5″ SATA3 Drive Bays
One PCI-E 3.0 x16 HHHL (Half-Height Half-Length) Slot
Two GbE LAN ports,
200W Low Noise AC-DC Power Supply with PFC, Gold Certified
11.3″ Short Depth Rackmount Chassis

GT145

GT145 Supermicro 1U Server 5019C-M4L Quad GbE LAN Ports

Supports Intel® Xeon® Processor E-2100, 8th Gen. Intel® Core™ i3 Processor,
Two 3.5″ or 3x 2.5″ Drive Bays
One PCI-E 3.0 x16 Slot
Four GbE LAN Ports

Up to 128gb DDR4 memory
350W Multi-output Power Supply, Platinum Level Certified
14.5″ Short Depth Rackmount Chassis

Don't see what you need?

We are here to help configure a system to fit your specific requirements.
