IPC Case: 4U, 5-Bay, 14BP, Deep

$427.00

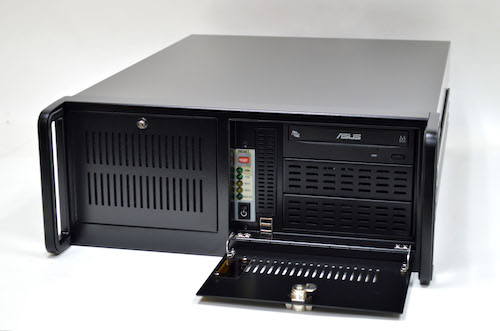

  • 4U deep rackmount backplane chassis
  • 14 PCI slots
  • 21.6″ deep
  • Three 5.25″ external bays, one 3.5″ external bay, and three internal 3.5″ drive bays
  • Lockable front panel controls
  • PS/2 ATX form-factor power supply
  • Black color (beige version shown)
SKU: J4705 Categories: ,

Description

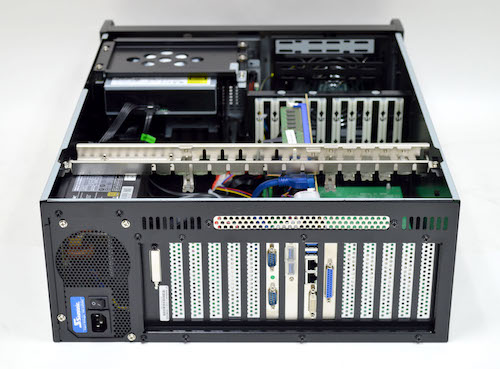

Our industrial 4U ATX chassis will support a 14-slot backplane. There are three 5.25″ drive bays, one 3.5″ bay, and three internal 3.5″ bays, all mounted on a floating shock-mounted frame, with a locking drive cover. A 12cm cooling fan is built-in with a removable filter. An adjustable expansion card clamp is built into this sturdy case to keep adapter cards in place under shock and vibration. Choose any PS/2-style power supply.

Additional information

Key Details

Mounting Styles: Rackmount
Board Form Factor: Backplane (up to 14 Slots)
PSU Form Factor: PS/2 ATX
Color: Black

Physical Dimensions

Depth: 21.64 in
Rack Height: 4U
Weight: 42.6 lbs

Case Details

Internal 3.5" Bays: 3
External 3.5" Bays: 1
External 5.25" Bays: 3
Slimline Optical Bay: No
Front Panel USB: Yes
PCI Slots: 14
Card Slot Profile: Full-Height PCI
Air Filter Size: 115mm x 145mm

Power

Supports Hotswap PSUs: Yes
PSU Max Depth: 300 mm

CS702 14S Backplate 4U IPC [14S4UWIN-BK], qty: 1

CS760 IPC Case 5 Bay 4U Deep [587-BK], qty: 1

RK516 ATX Case Small Power Switch, 90cm Wire, qty: 1

FN166 Dynatron Fan (120mm x 25mm) 12V, 4-Wire, qty: 1
